KS8
Features
- Head : Up to 270 metres
- Discharge Range : Up to 2800 LPM
- Power Rating : 4.5 to 45 kW / 6 to 60 HP
- Voltage Range : 280 to 440 volts (three phase)
- Type of Cooling : Water-filled
- Insulation : B class
- Protection : IP 68

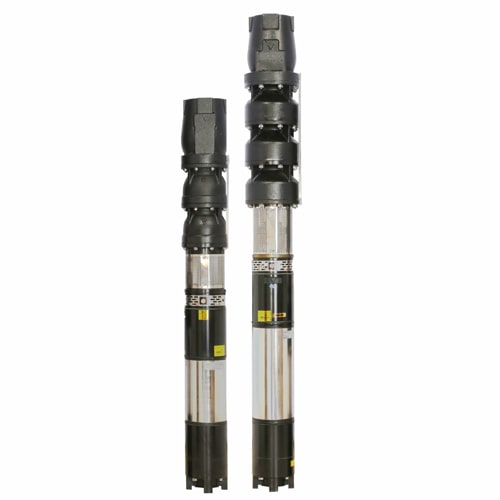

KS7
SPECIFICATIONS
- Head Range : Up to 81 metres
- Discharge Range : Up to 2100 LPM
- Power Rating : 4.5 to 18.5 kW (6 to 25 HP)
- Voltage Range : 280 to 440 volts (three phase)
- Insulation : B class
- Type of Cooling : Water-filled
- Protection: IP 68

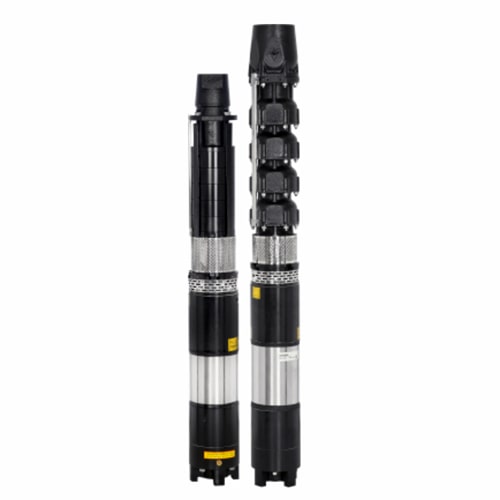

KS6
SPECIFICATIONS
- Head Range : Up to 276 metres
- Discharge Range : Up to 1540 LPM
- Power Ratings : 2.2 to 18.5 kW (3 to 25 HP)
- Voltage Range : 160 to 240 volts (single phase)
- 200 to 440 volts (three phase)
- Insulation : B class
- Type of Cooling : Water-filled
- Protection : IP 68

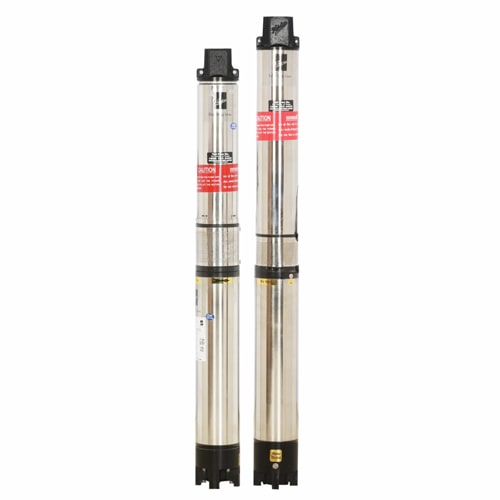

KS4
SPECIFICATIONS
- Head Range : Up to 520 metres
- Discharge Range : Up to 420 LPM
- Power Ratings : 0.37 to 5.5 kW (0.5 to 7.5 HP)
- Voltage Range : 160 to 240 volts (single phase)
- 280 to 440 volts (three phase)
- Type of Cooling : Water-filled
- Insulation : B class
- Protection : IP 68
KS3
SPECIFICATIONS
- Head Range : Up to 131 metres
- Discharge Range : Up to 72 LPM / 4.3 m3/h
- Power Ratings : 0.37 to 1.1 kW (0.5 to 1.5 HP)
- Voltage Range : 160 to 240 volts (single phase)
- Type of Cooling : Water-filled
- Protection : IP 68
- Insulation : B class

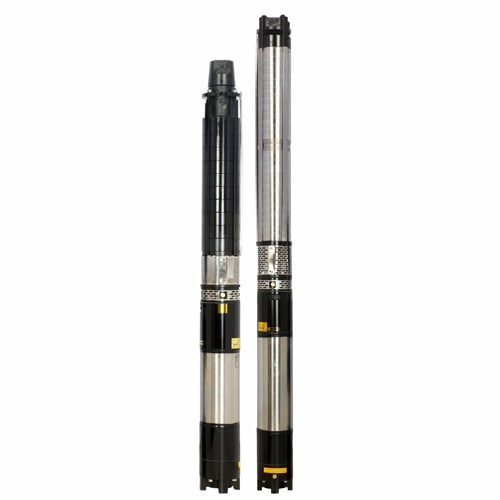

HHF / HHN
SPECIFICATIONS
- Head : Up to 427 Metres
- Capacity : Up to 650 LPM
- Power Rating : 2 .2 to 18.3 kW / 3 to 25 HP
- Voltage range : 200 to 440 volts (three phase)
- Type of cooling : Water-filled
- Insulation : B class
- Protection : IP 68
